All Aluminum Thermally Broken Folding Windows (FTS.60)
Explore All Aluminum Thermally Broken Folding Windows (FTS.60) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
This thermally broken all-aluminum folding window offers superior insulation and a sleek design, combining energy efficiency with smooth, stylish functionality.
All Aluminum Thermally Broken Folding Windows (FTS.60): Panel dimensions are confirmed for the selected configuration; stile 2 ¹⁄₁₆"; style Modern.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.

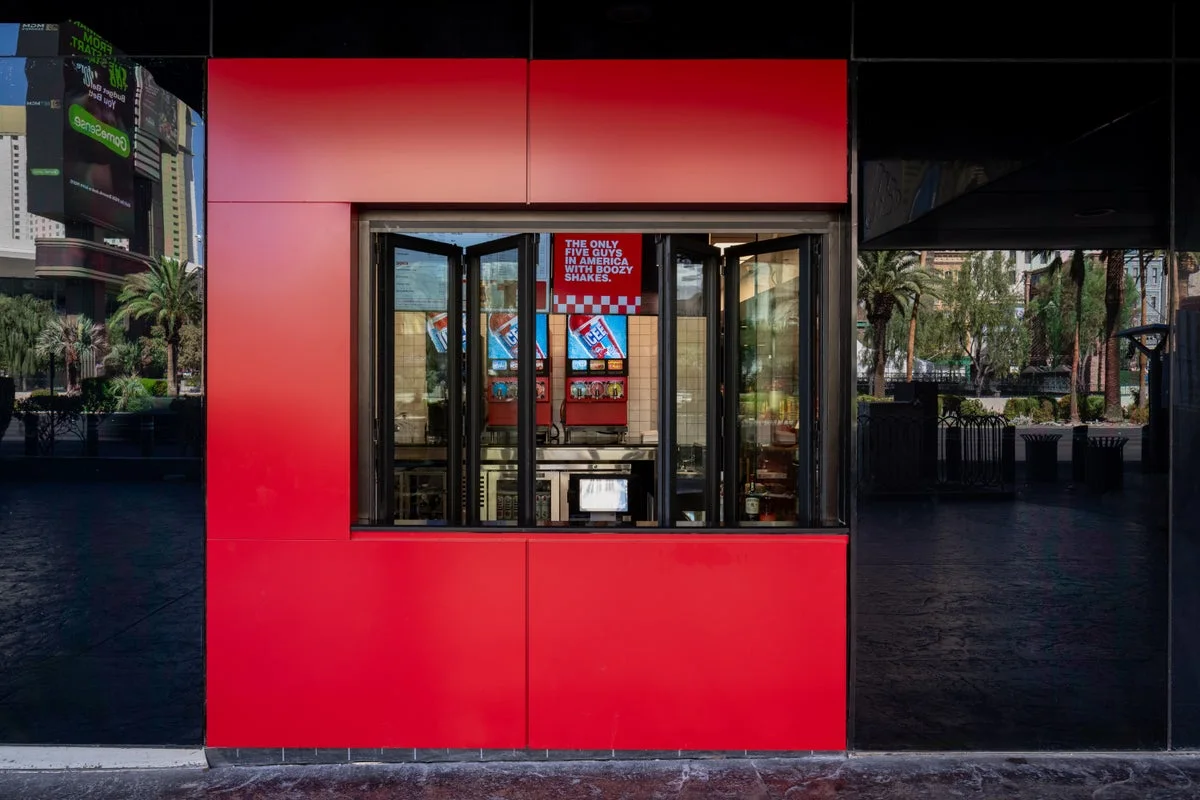

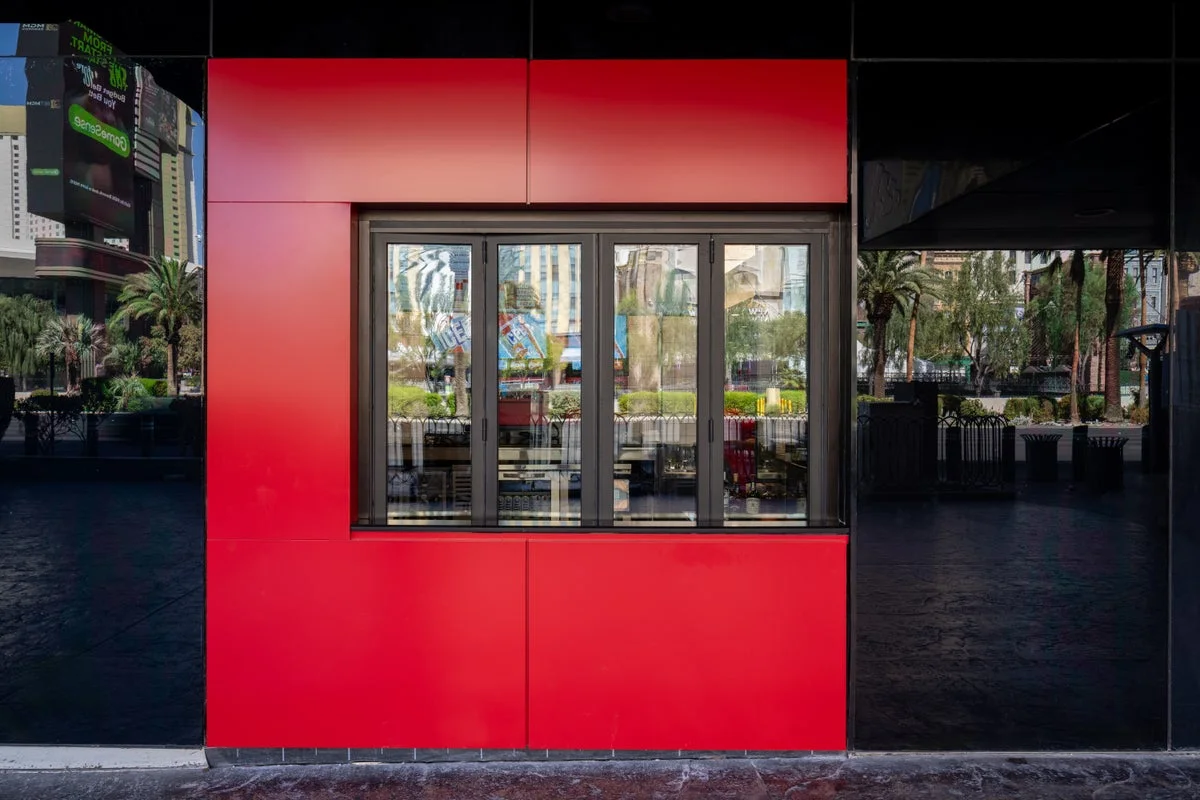

Photography & design details
Configuration drawings and planning details

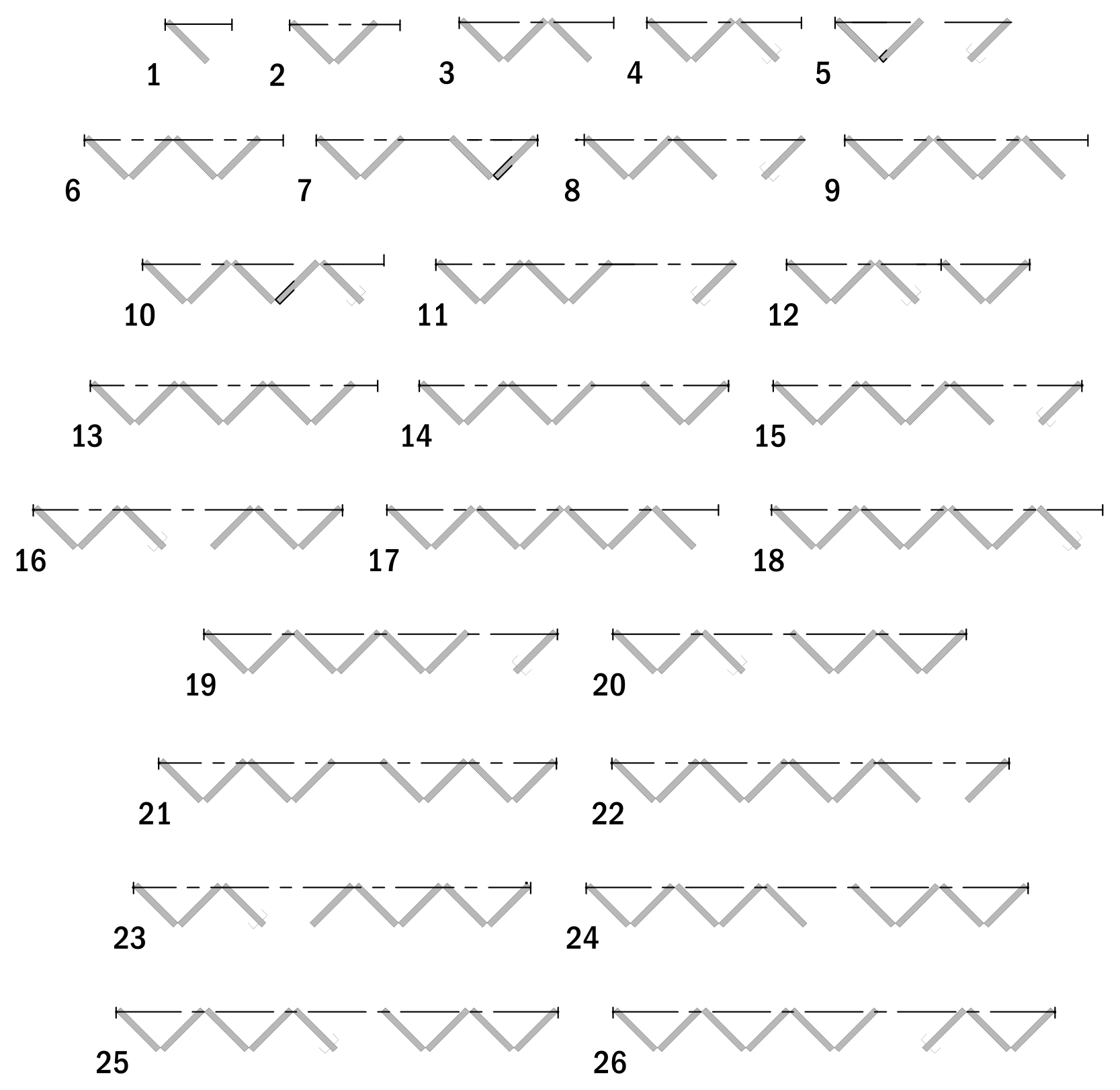

The layout diagram shows how panel groups fold to one side or divide between sides. Choose the parking location and everyday access arrangement first, then check the folded stack and handle clearance beside the opening. Panel count, frame dimensions and individual panel limits are confirmed together for the selected configuration.
Use the drawings to discuss All Aluminum Thermally Broken Folding Windows (FTS.60) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Tracks
Recessed Tracks
Configurations
Throw Handles
Pull Handles
Flag Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.32
- SHGC
- 0.20
- Impact Rated
- -
- AAMA Tested
- Yes
- Design Pressure (psf)
- +45.11
- Air Infiltration (cfm/ft2)
- 0.11 @ 75 Pa, 0.28 @ 300 Pa
- Water Penetration Resistance (psf)
- 6.89
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- Confirmed for your configuration
- Minimum Panel Height
- 36"
- Maximum Panel Width
- Confirmed for your configuration
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- 10 lbs per sqft
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- 16 Bipart
- Stile
- 2 ¹⁄₁₆"
- Rail
- 2 ¹⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
