lift and slide doors
All Aluminum Thermally Broken (LTS.30)
Explore All Aluminum Thermally Broken (LTS.30) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
This system combines energy efficiency with sleek aluminum design, ensuring superior thermal insulation and seamless indoor-outdoor transitions.
All Aluminum Thermally Broken (LTS.30): maximum panel height 144"; maximum panel width 108"; stile 3 ³⁄₁₆"; style Modern.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.

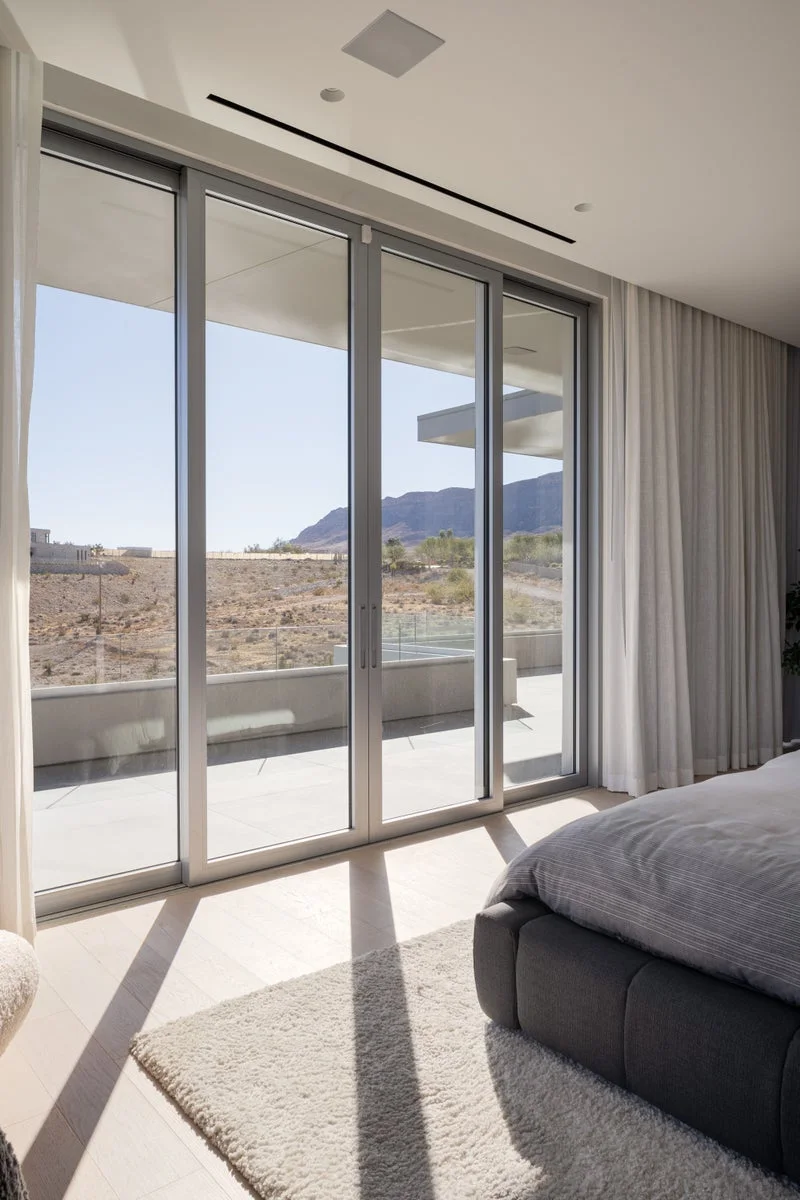

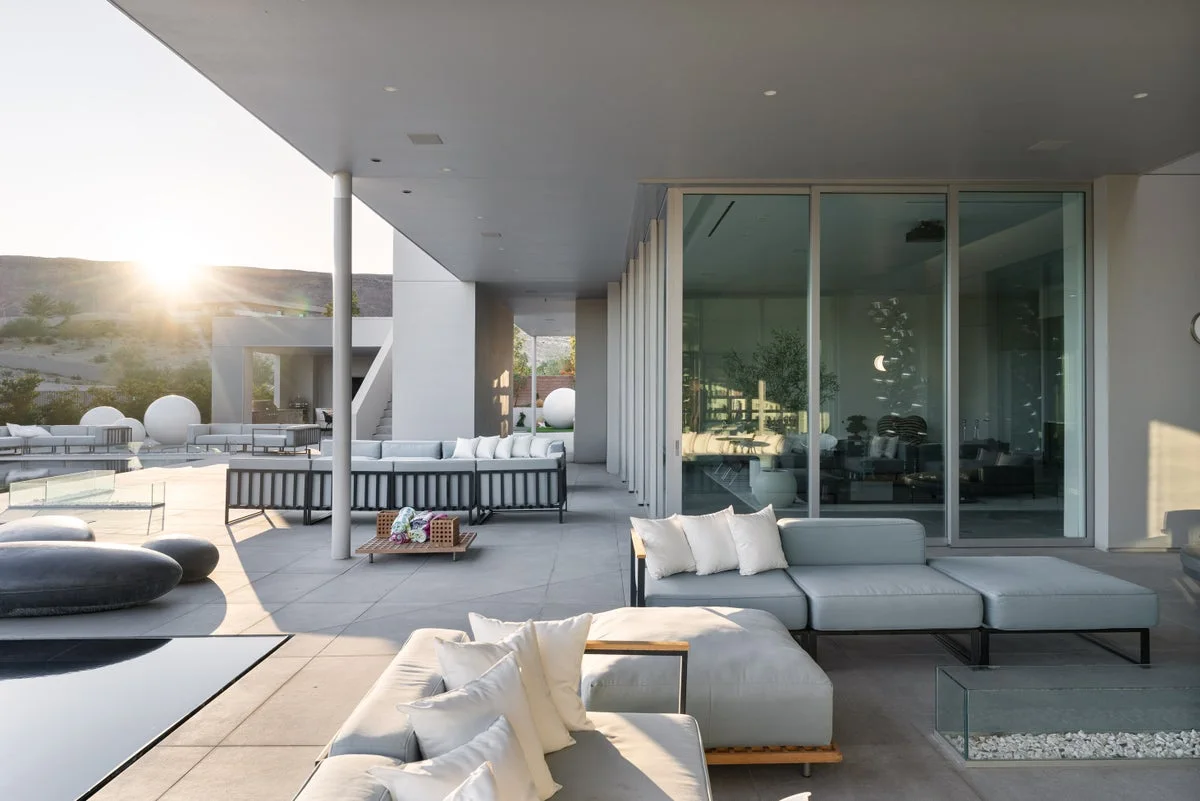

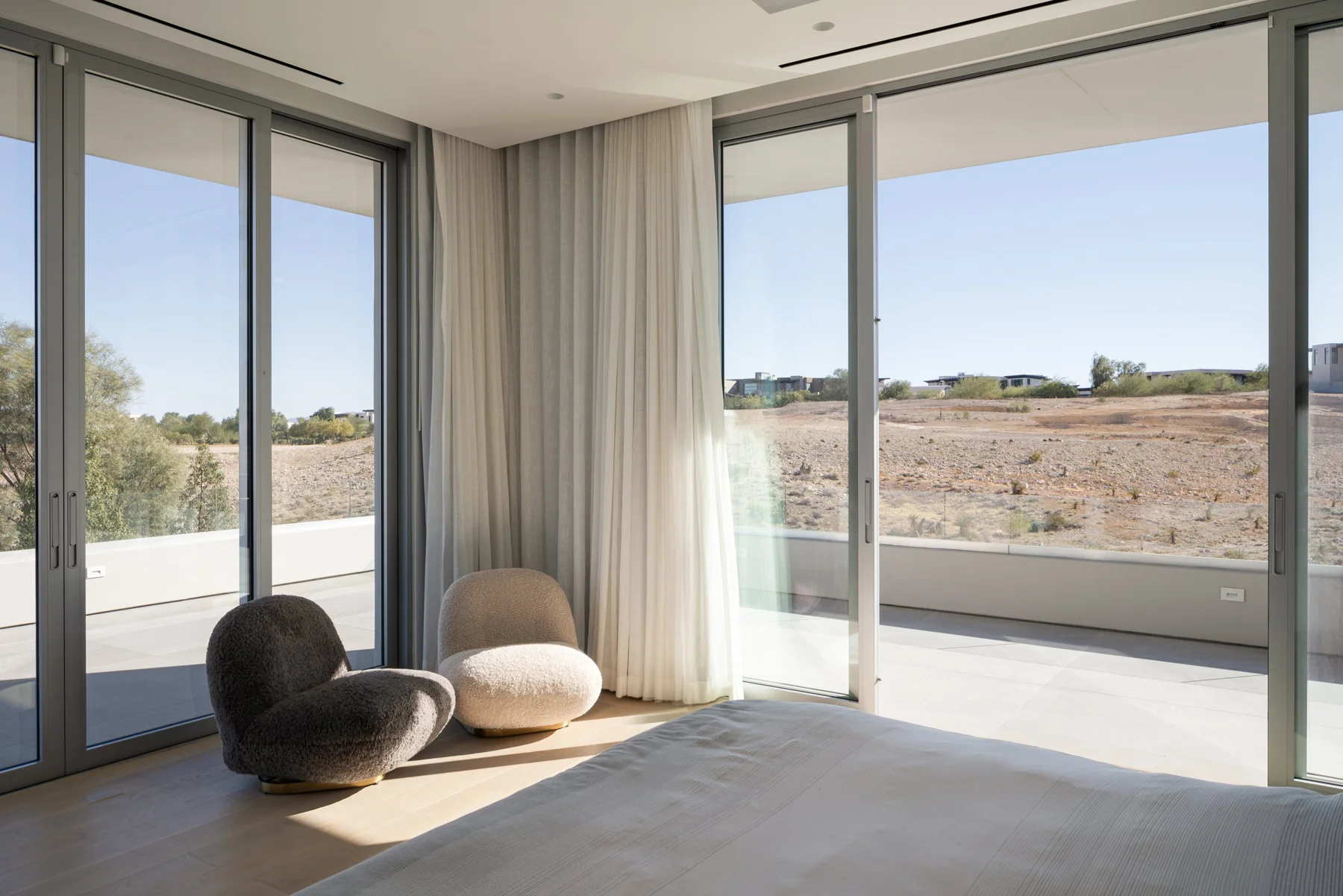

Photography & design details

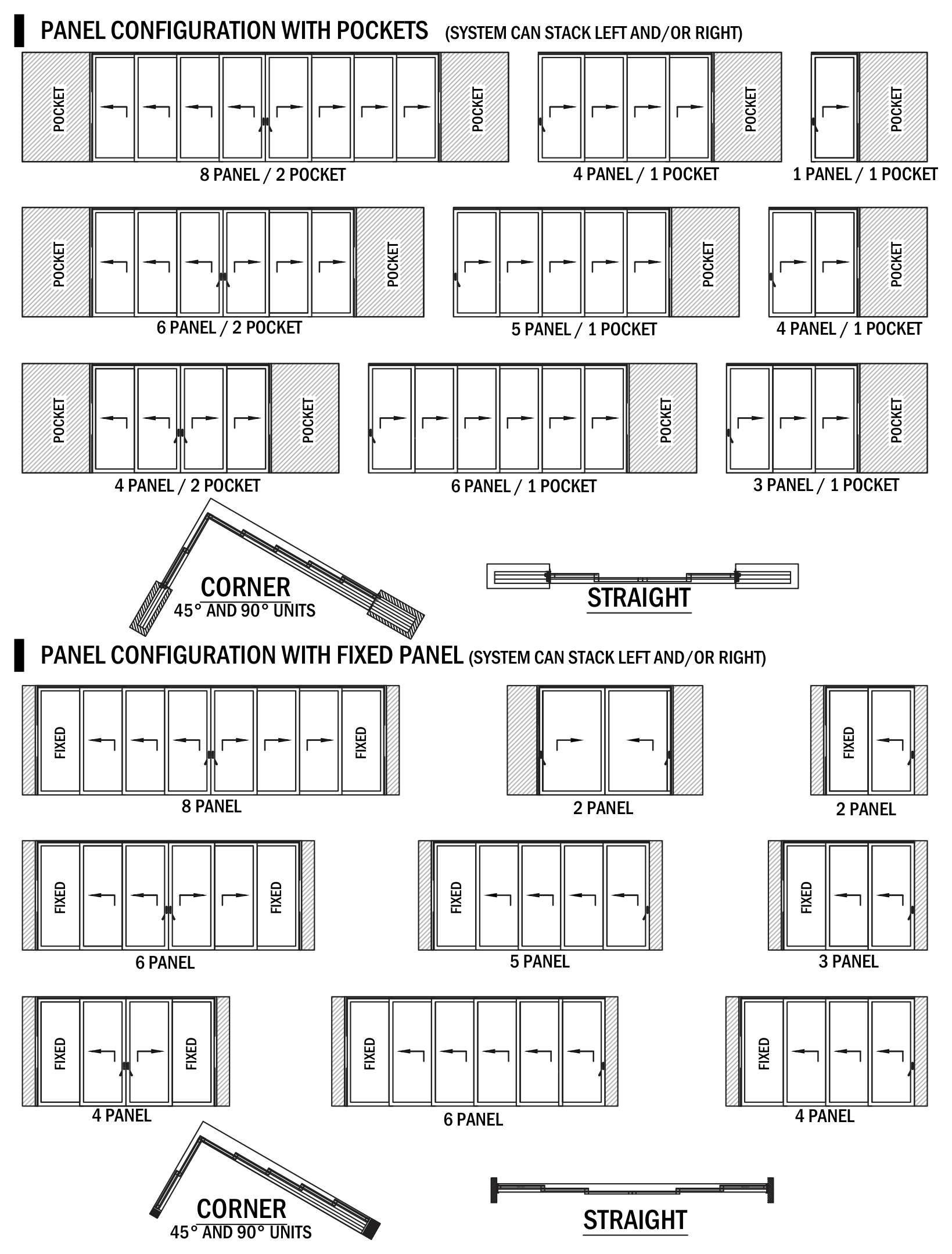

Configuration drawings and planning details
Compare the panel arrangements with the space available beside the opening. Fixed-panel layouts and pocket layouts leave different clear openings and require different parking space. Select the travel direction, panel grouping and track count before finalizing the frame size, pocket or floor recess.
Use the drawings to discuss All Aluminum Thermally Broken (LTS.30) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Tracks
Recessed Tracks
Configurations
Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.43 @ multi-slide
- SHGC
- 0.21 @ multi-slide
- Impact Rated
- -
- AAMA Tested
- Yes
- Design Pressure (psf)
- ±60.15 - LC, ±30.08 - CW
- Air Infiltration (cfm/ft2)
- 0.15
- Water Penetration Resistance (psf)
- 8.35
- Structural Test Pressure (psf)
- ±90.23
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 108"
- Minimum Panel Width
- 28"
- Maximum Panel Weight
- 880 lbs
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- Unlimited for Recessed Tracks
- Stile
- 3 ³⁄₁₆"
- Rail
- 3 ³⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
