All Aluminum Thermally Broken Slim Profile (PDTS.64)
Explore All Aluminum Thermally Broken Slim Profile (PDTS.64) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
Featuring a thermally broken slim profile, this pivot door offers excellent insulation and a contemporary design for energy-efficient elegance.
All Aluminum Thermally Broken Slim Profile (PDTS.64): maximum panel height 144"; maximum panel width 96"; stile 2 ⁷⁄₁₆"; style Modern.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Photography & design details

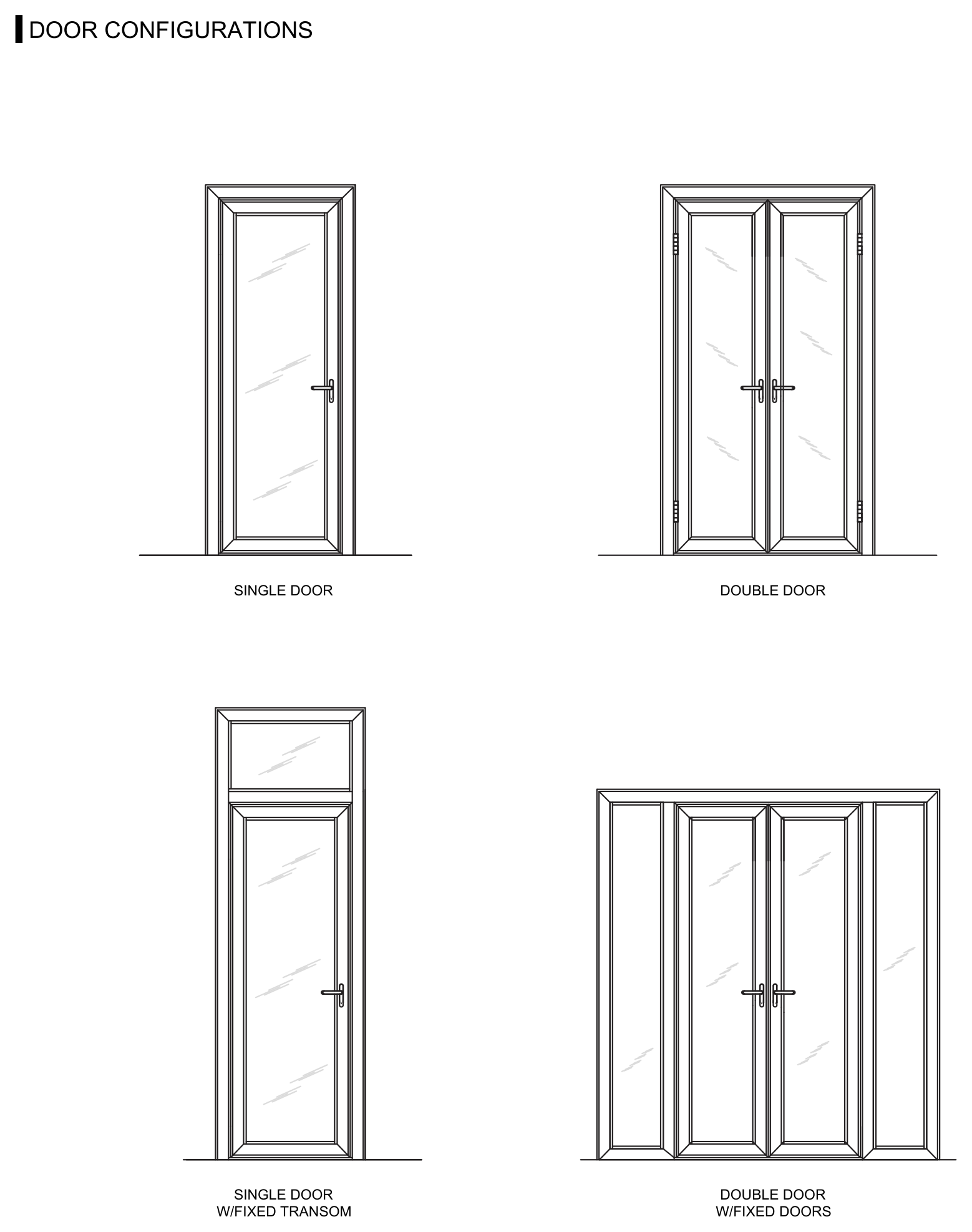

Configuration drawings and planning details
Use the elevation to coordinate the door appearance and any surrounding fixed glazing. Add a plan view showing the pivot location and the sweep on both sides of the pivot. Confirm the usable passage, landing clearance and hardware position with the final assembly drawing.
Use the drawings to discuss All Aluminum Thermally Broken Slim Profile (PDTS.64) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Threshold
Recessed Thresholds
Configurations
Sidelites & Transoms
Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 80"
- Maximum Panel Width
- 96"
- Minimum Panel Width
- 40"
- Maximum Panel Weight
- 900 lbs
- Panel Depth
- 2 ¹⁵⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- 2 ⁷⁄₁₆"
- Rail
- 2 ⁷⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
All Aluminum Thermally Broken Slim Profile (PDTS.64). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
