Aluminum/Wood Clad Thermally Broken (FDWTS.31)
Explore Aluminum/Wood Clad Thermally Broken (FDWTS.31) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
Blending the durability of aluminum with the warmth of wood, these thermally broken hinged doors offer a stylish and reliable solution for any home.
Aluminum/Wood Clad Thermally Broken (FDWTS.31): maximum panel height 120"; maximum panel width 48"; stile 3 ³⁄₁₆"; style Modern to traditional.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.

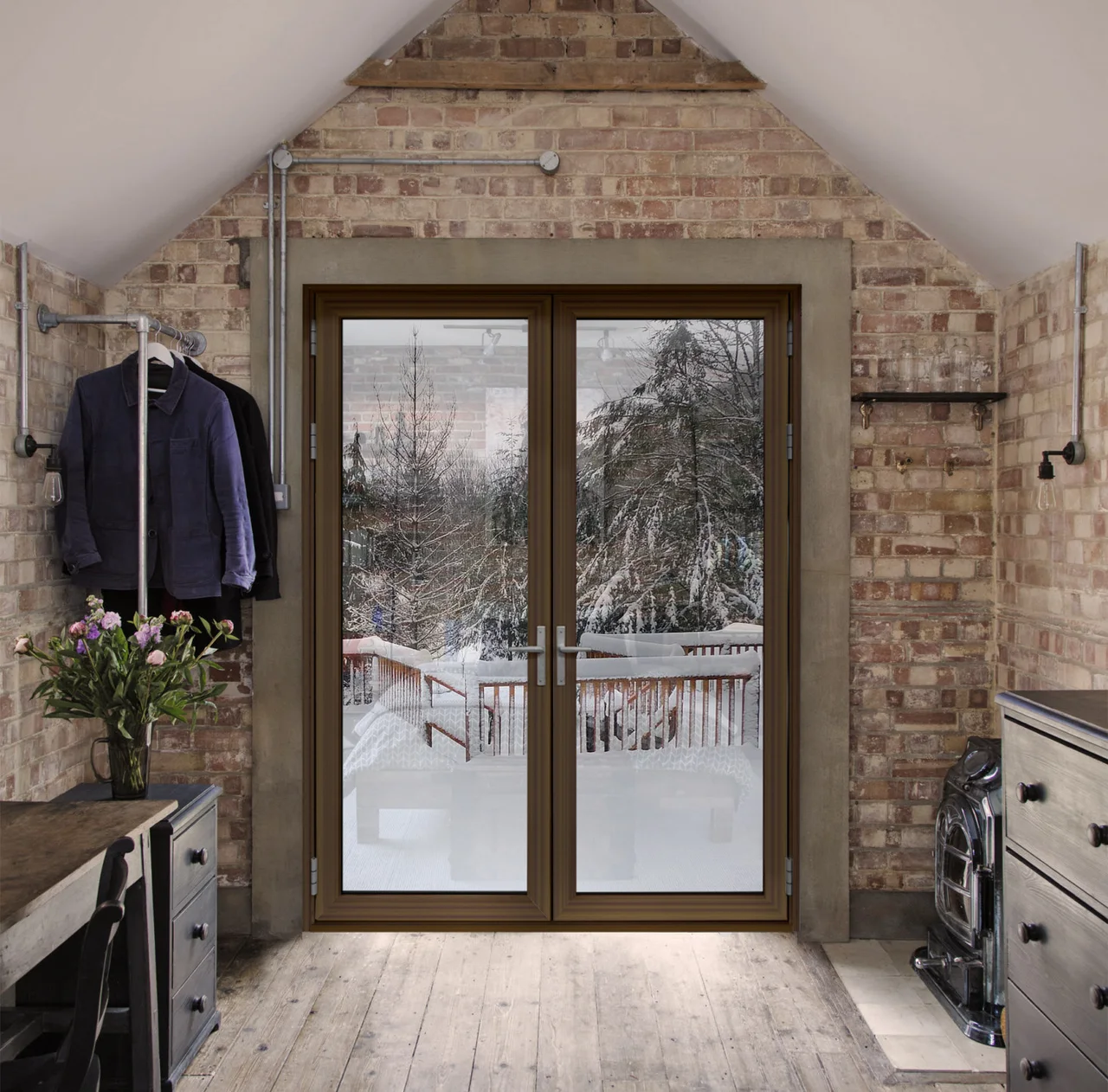

Photography & design details

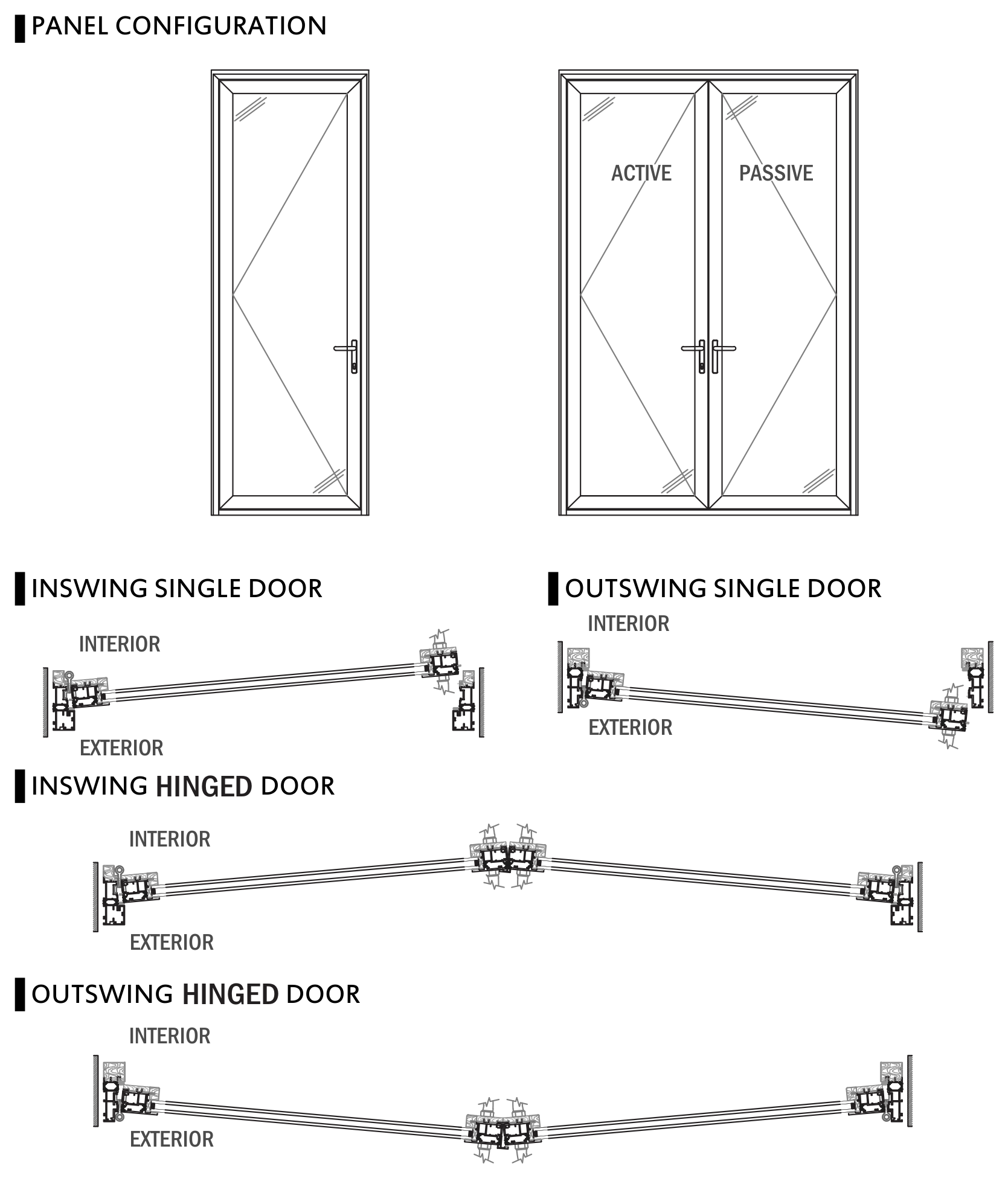

Configuration drawings and planning details
The elevation examples help distinguish the operating leaves from transoms and adjoining fixed glazing. Identify the active leaf, the viewing side used for handing, and the intended swing direction. Review the usable passage and the complete frame size separately, then coordinate the sill and hardware for that layout.
Use the drawings to discuss Aluminum/Wood Clad Thermally Broken (FDWTS.31) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Wood
Surface Thresholds
Recessed Thresholds
Configurations
Sidelites & Transoms
Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 120"
- Minimum Panel Height
- 80"
- Maximum Panel Width
- 48"
- Minimum Panel Width
- 30"
- Maximum Panel Weight
- 400 lbs
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- 2
- Stile
- 3 ³⁄₁₆"
- Rail
- 3 ³⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
Aluminum/Wood Clad Thermally Broken (FDWTS.31). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
