Aluminum/Wood Clad Thermally Broken (HWTS.75)
Explore Aluminum/Wood Clad Thermally Broken (HWTS.75) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
This system blends thermal efficiency with wood and aluminum, ensuring superior insulation, smooth sliding, and a stylish, reliable solution.
Aluminum/Wood Clad Thermally Broken (HWTS.75): maximum panel height 120"; maximum panel width 50" Main Panel, 36" Convertible/Pivot Panel; stile 2 ¹⁄₁₆"; style Modern to Traditional.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Photography & design details
Configuration drawings and planning details

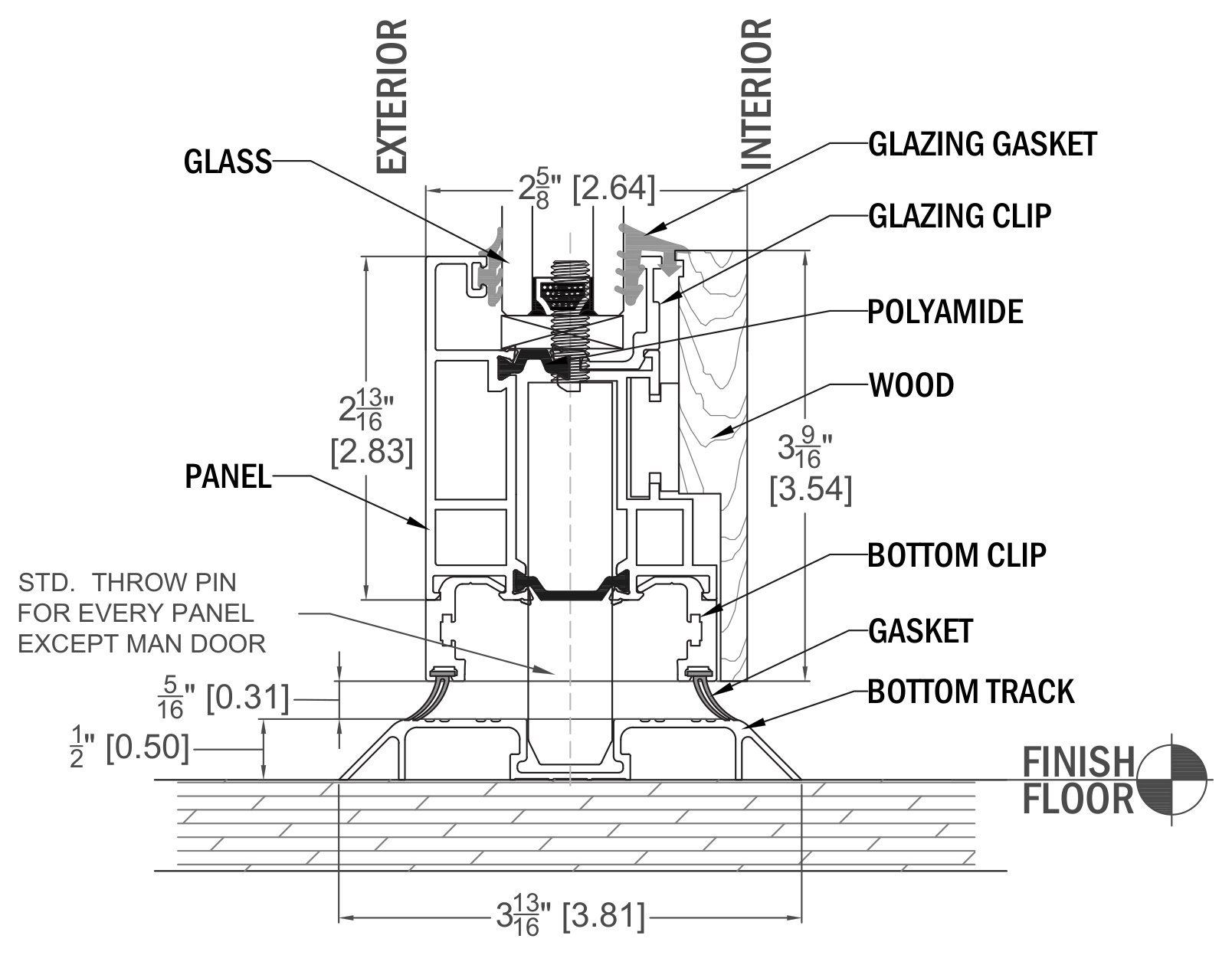

The track section identifies the panel, lower components and finished-floor reference for this series. Coordinate the selected track with the surrounding floor construction, panel parking and service access. The illustrated section is a design reference; the installation package must also identify the head support, jambs, anchors and water-management details.
Use the drawings to discuss Aluminum/Wood Clad Thermally Broken (HWTS.75) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Wood
Surface Tracks
Recessed Tracks
Configurations
Throw Handles
Flag Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 120"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 50" Main Panel, 36" Convertible/Pivot Panel
- Minimum Panel Width
- 25"
- Maximum Panel Weight
- 11 lbs per sqft
- Panel Depth
- 2 ¹¹⁄₁₆"
- Maximum Number of Panels
- Unlimited
- Stile
- 2 ¹⁄₁₆"
- Rail
- 2 ¹⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
Aluminum/Wood Clad Thermally Broken (HWTS.75). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
