lift and slide doors
Solid Wood (LWWS.12)
Explore Solid Wood (LWWS.12) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
Crafted from high-quality wood, this system offers a warm, natural aesthetic with the durability and functionality of modern lift and slide technology.
Solid Wood (LWWS.12): maximum panel height 144"; maximum panel width 192"; stile 4"; style Traditional.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.

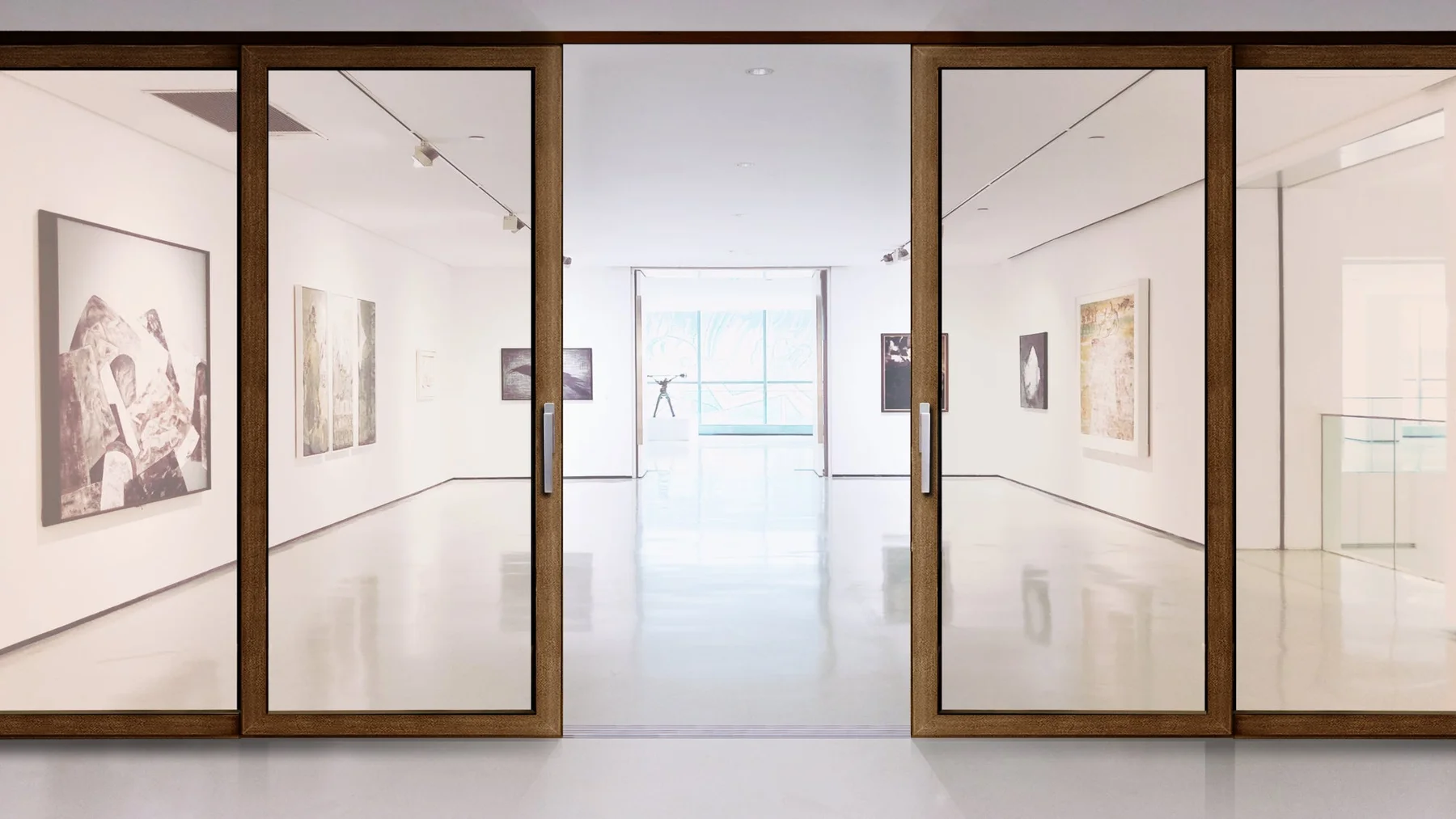

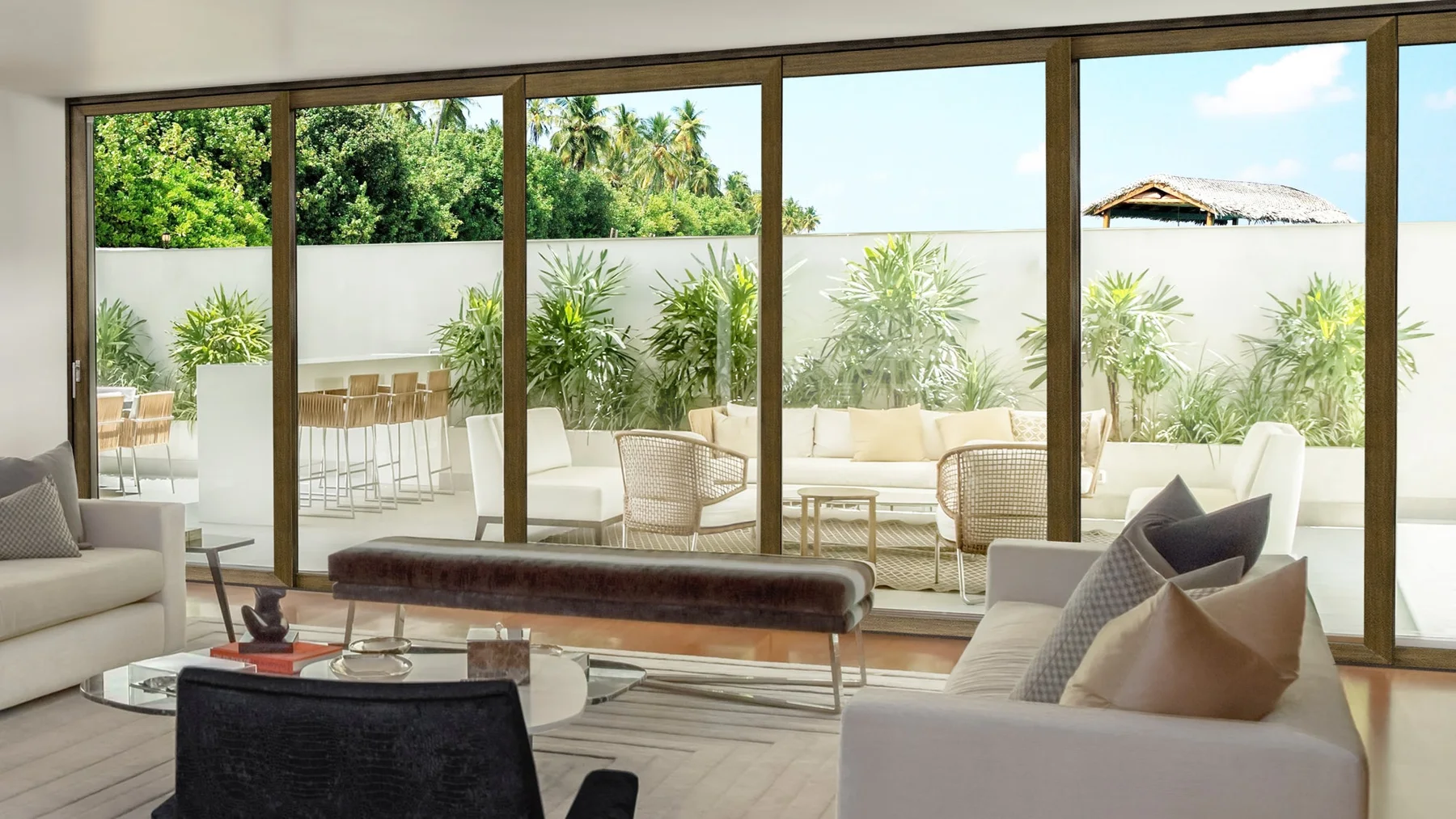

Photography & design details

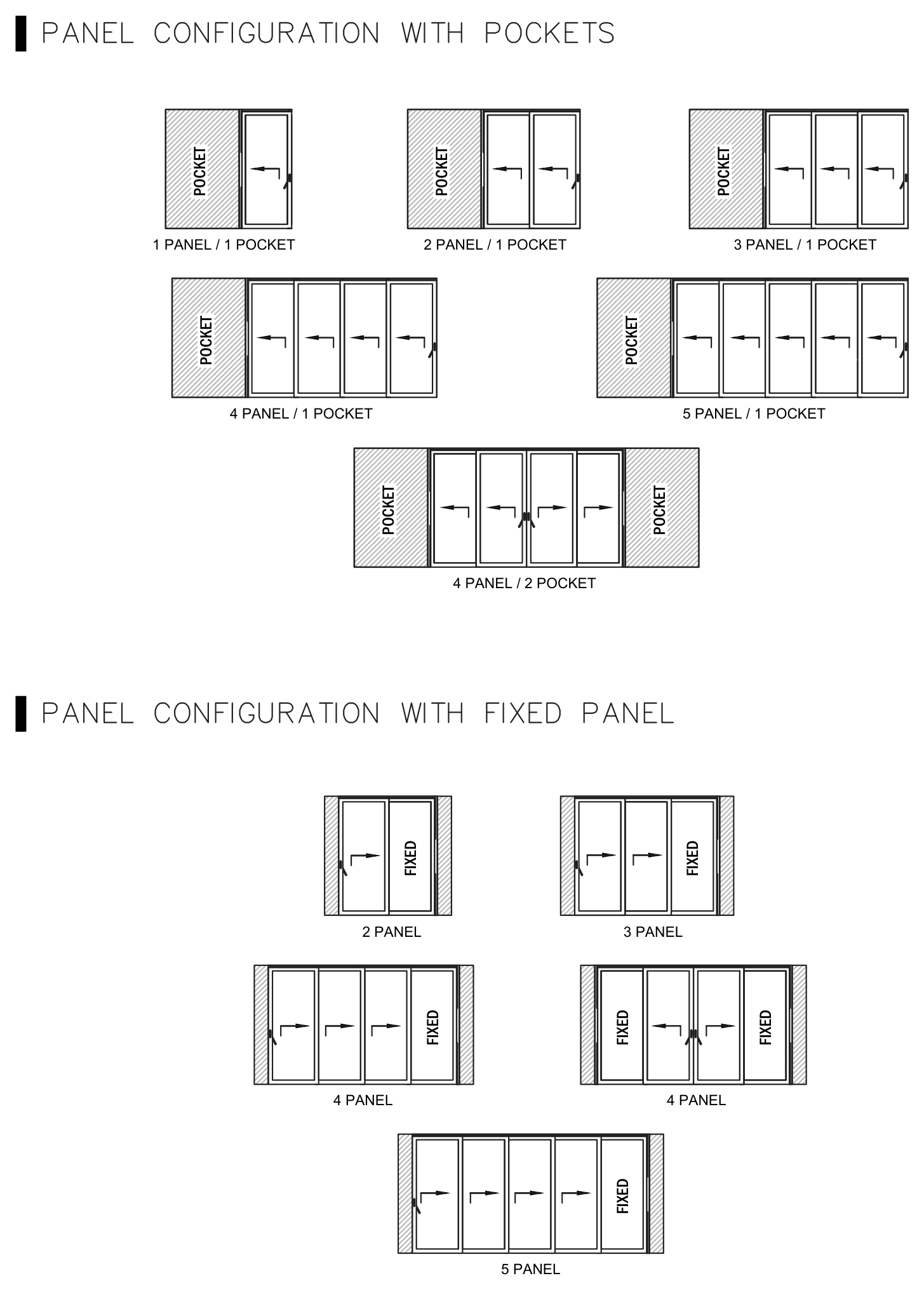

Configuration drawings and planning details
Compare the panel arrangements with the space available beside the opening. Fixed-panel layouts and pocket layouts leave different clear openings and require different parking space. Select the travel direction, panel grouping and track count before finalizing the frame size, pocket or floor recess.
Use the drawings to discuss Solid Wood (LWWS.12) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Wood
Surface Track
Recessed Tracks
Configurations
Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 36"
- Maximum Panel Width
- 192"
- Minimum Panel Width
- 28"
- Maximum Panel Weight
- 1,000 lbs
- Panel Depth
- 2 ½"
- Maximum Number of Panels
- Unlimited
- Stile
- 4"
- Rail
- 4"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
Solid Wood (LWWS.12). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
