casement windows
Steel (M.40.C)
Explore Steel (M.40.C) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
This steel casement window combines robust construction with a contemporary design, providing durability and sleek aesthetics for any architectural style.
Steel (M.40.C): maximum panel height 96"; maximum panel width 40"; stile 1 ⅝"; style Modern.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Photography & design details

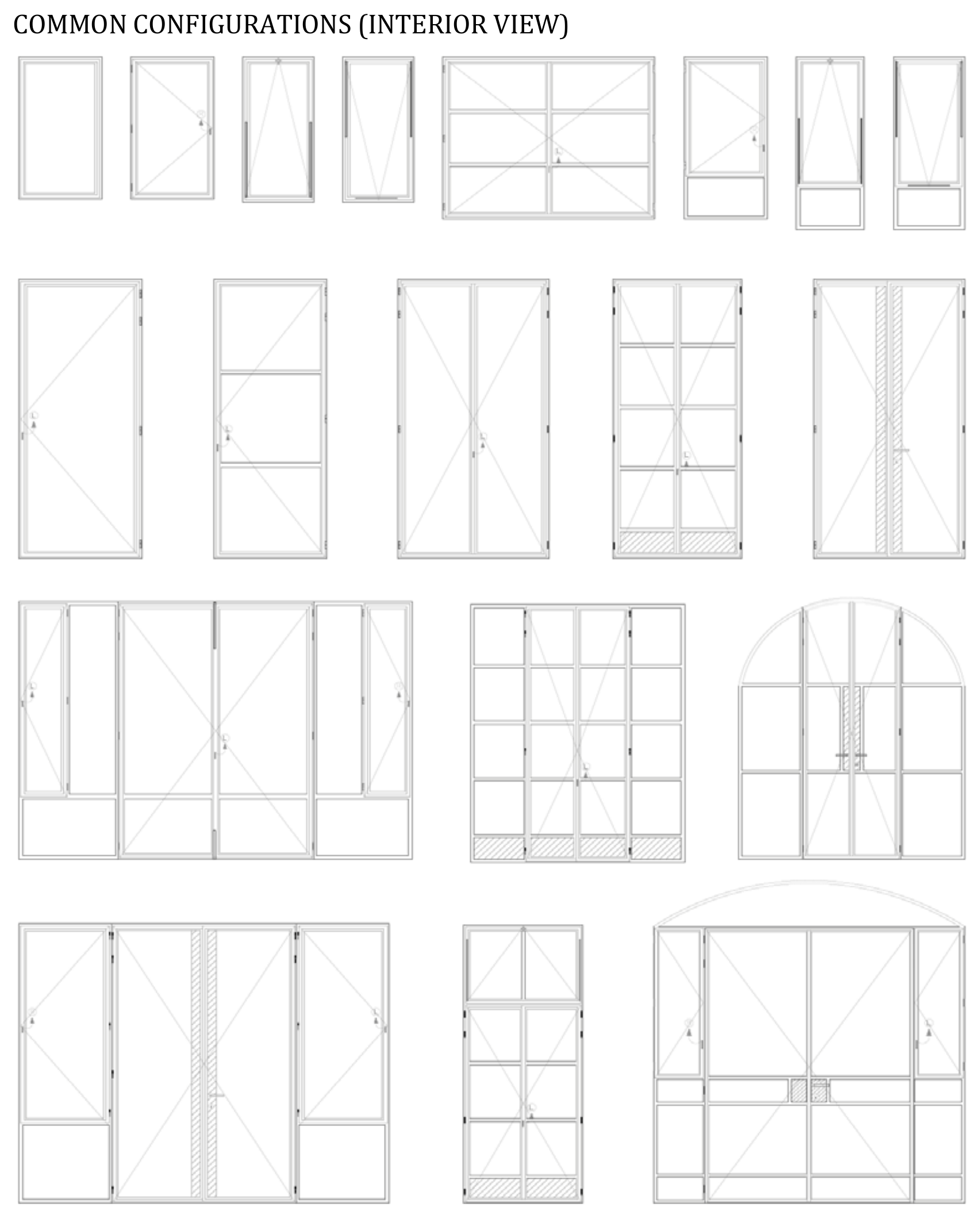

Configuration drawings and planning details
Read the illustrated operation and frame detail alongside the exact window model. Series drawings can show several window types; select the operating arrangement for this opening and confirm its dimensions, glass and hardware. The wall opening, outside frame and visible glass dimensions serve different purposes and should be recorded separately.
Use the drawings to discuss Steel (M.40.C) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Handles
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 96"
- Minimum Panel Height
- 18"
- Maximum Panel Width
- 40"
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- -
- Panel Depth
- 2 ⅛"
- Maximum Number of Panels
- Unlimited
- Stile
- 1 ⅝"
- Rail
- 1 ⅝"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
Steel (M.40.C). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
