hinged doors
Steel Thermally Broken (FDMT.50)
Explore Steel Thermally Broken (FDMT.50) for commercial submittals. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for commercial submittals
Combining thermal efficiency with a steel frame, this hinged door provides superior insulation and durability, enhancing both style and energy performance.
Steel Thermally Broken (FDMT.50): maximum panel height 144"; maximum panel width 48"; stile 1 ¹³⁄₁₆"; style Modern.
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
This system appears in the impact-rated range. Confirm the exact approval, size, glazing, substrate and anchoring for your project. General size limits do not establish an approved impact configuration.

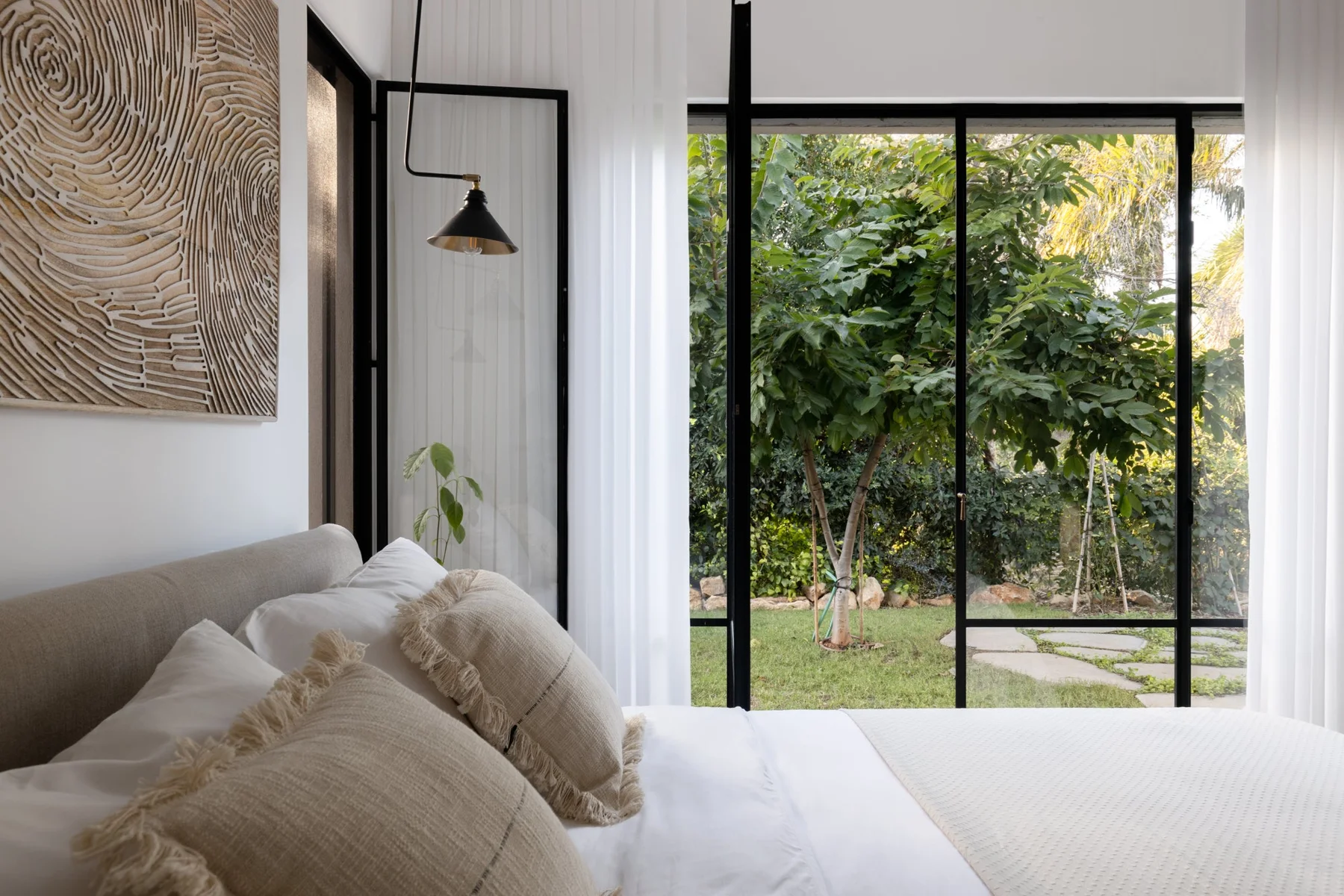

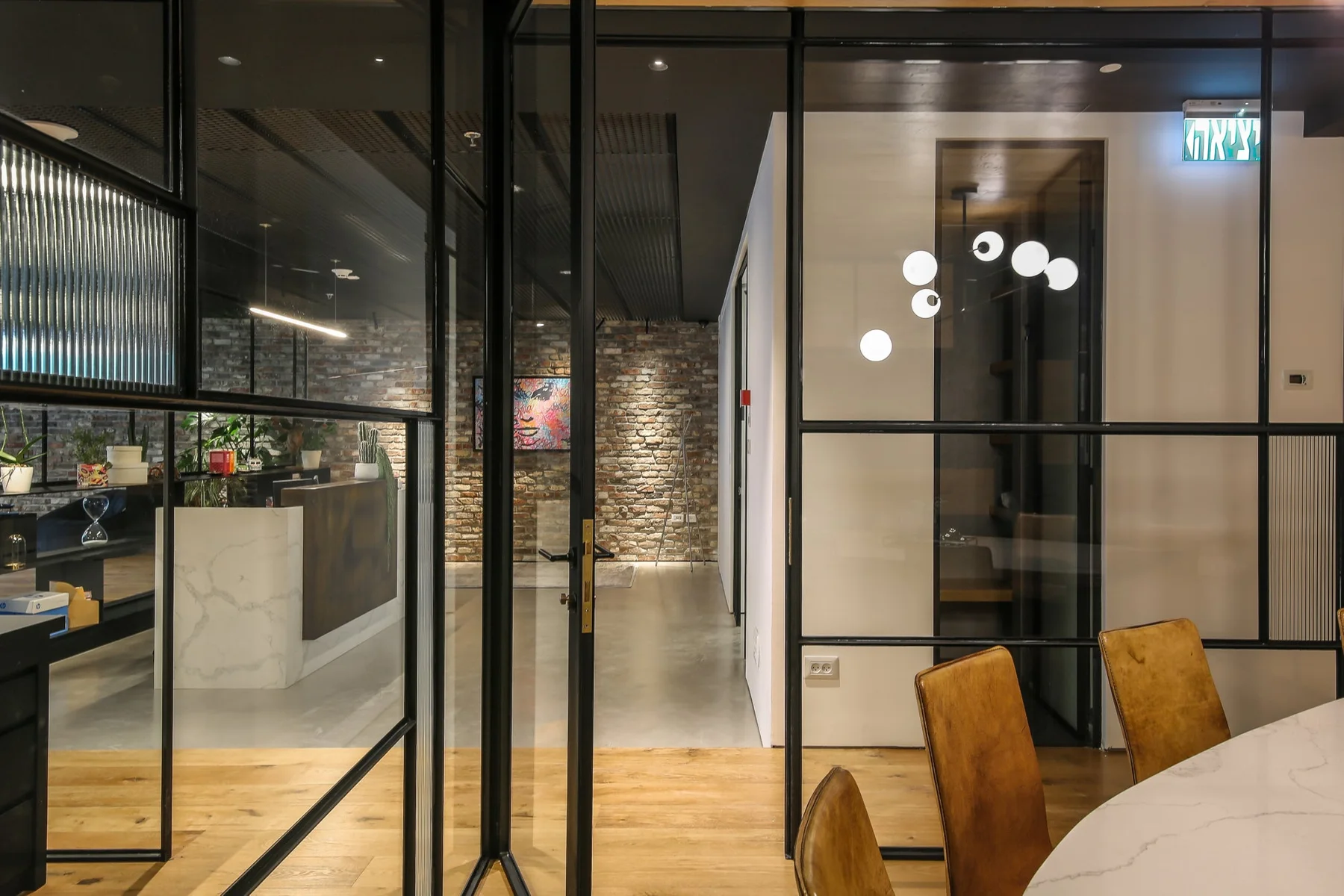

Photography & design details
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Colors & Finishes
Surface Thresholds
Recessed Thresholds
Configurations
Sidelites & Transoms
Handles
Panic Hardware
Divided Lites
Glass
Additional Options
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- 0.34
- SHGC
- 0.21
- Impact Rated
- Yes
- AAMA Tested
- Yes
- Design Pressure (psf)
- ±50.13 - outswing
- Air Infiltration (cfm/ft2)
- 0.12 - outswing
- Water Penetration Resistance (psf)
- 7.52 - outswing
- Structural Test Pressure (psf)
- ±75.19 - outswing
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- 144"
- Minimum Panel Height
- 80"
- Maximum Panel Width
- 48"
- Minimum Panel Width
- 30"
- Maximum Panel Weight
- 400 lbs
- Panel Depth
- 2 ⅜"
- Maximum Number of Panels
- 2
- Stile
- 1 ¹³⁄₁₆"
- Rail
- 1 ¹³⁄₁₆"
Design and installation planning
Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Plan the opening
Your project
Request a quote
Steel Thermally Broken (FDMT.50). Provide the opening schedule, elevations, wall conditions, required design pressures and project location. Identify access, egress, threshold and hardware requirements for the design team before approving a system.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
